Description
Cell Chronic Powerwall 2.0 ECO_100Ah-51.2V-5.12Kwh LiFePo4 Battery
Crafted out of Lithium Iron Phosphate (LiFePO4) technology, this is a battery built to last. with 4500+ recharge cycles @80% DOD the 100Ah provides 5X the lifespan than your typical SLA battery. Built in smart BMS which can realize real-time monitoring the battery. It is the best home storage solution available in the market
Key Specifications & Features
- Lightweight: 53 KG

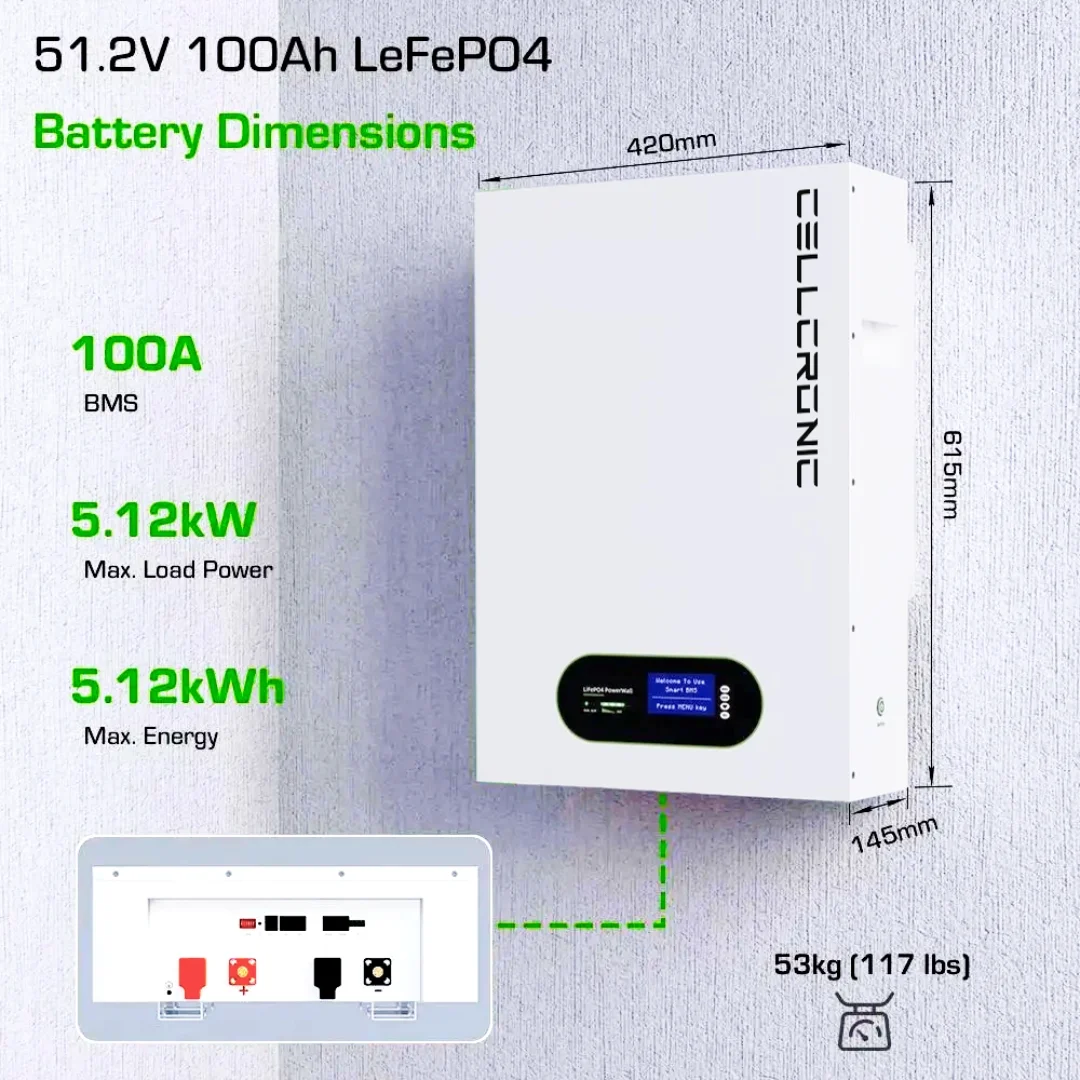

- Compact: H615*W420*D145(mm)
- Parallel Support: Up to 16pcs
- 100AH _5.12kwh Battery Capacity
- Warranty: 5 Years
- No maintenance, Long Service Life,
- Environment Friendly Battery.
- Service Span Up to 60 years.
- 4500+ Life cycle at 80% DOD
- Good choice for daily power supply
| Model Powerwall 2.0 ECO_100Ah-51.2V-5.12Kwh | ||
| Electrical Characteristics | ||
| Nominal voltage | 51.2V | |
| Nominal capacity | 100Ah | |
| Energy | 5.12Kwh | |
| Cycle Life | 4500 Life Cycle at 80% DOD | |
| Months Self | ≤3.5% per month at 25℃ | |
| Battery Cell | 3.2V 100AH, Prismatic, LiFePo4 | |
| Cell compose method | 16S1P | |
| Charge & Discharge | ||
| Charge Voltage | DC 54.8V | |
| Discharge Cut-off Voltage | 40 A | |
| Standard Charge Current | 20 A | |
| Standard Discharge Current | 50 A | |
| Max. Continuous Charge Current | 100 A | |
| Max. Continuous Discharge Current | 100 A | |
| Temperature | ||
| Charge Temperature | 0 ~ 45°C（32 ~ 113°F) | |
| Discharge Temperature | -20 ~ 55°C（-4 ~ 131°F） | |
| Storage temperature | -10 ~ 45°C（14 ~ 113°F） | |
| Initial Impedance | <20mΩ | |
| General Data | ||
| Approx. Weight | Approx. 53KG | |
| Dimension (H*W*D) | H615*W420*D145(mm) | |
| Module Parallel | Support up to 16pcs parallel | |

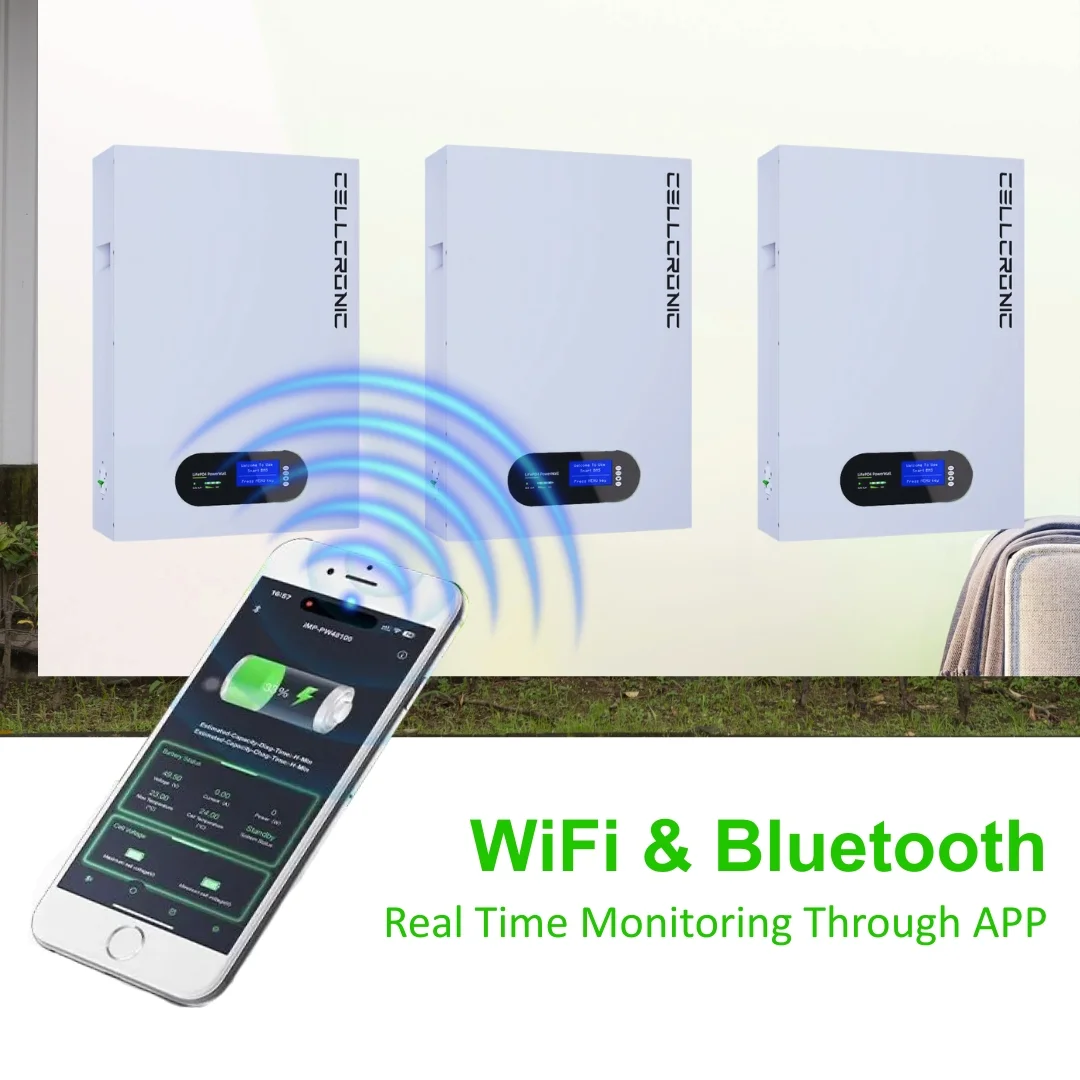

| Communication Mode | RS232 / RS485 / CAN | |
| Housing | Metal | |
| Screen | Colorful LCD Screen | |
| Cooling Method | Natural Cooling | |
| Support Inverter brands | Deye, Senergy, Sorotec, Voltronic”. (any brand inverter if you need to support) | |
| IP Rating | IP54 | |
| Protection | Over voltage protection (Cell & System), Low voltage protection (Cell & System), High temperature protection, Low temperature protection, Short circuit protection, Over current protection | |
| Warranty | 5 Years | |
