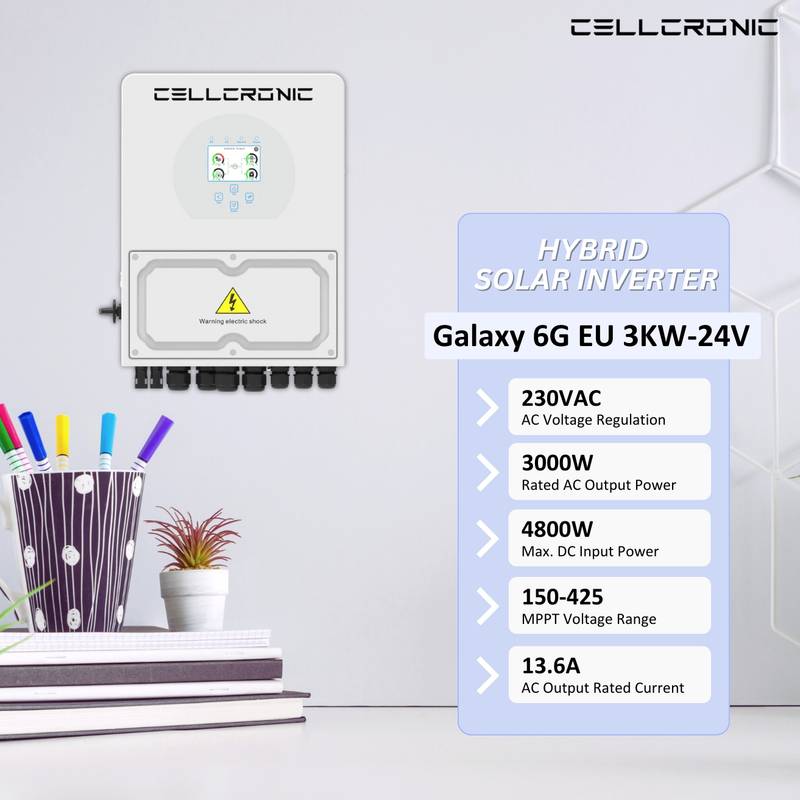

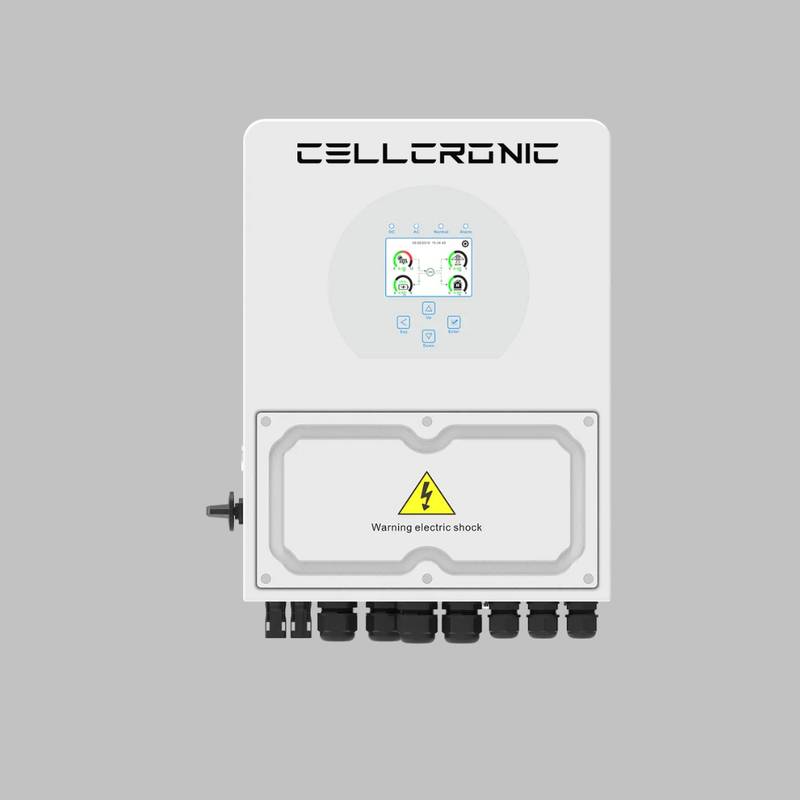

Galaxy 6G EU 3Kw Hybrid Solar Inverter
Galaxy 6G is a 6th generation hybrid solar inverter technology designed for both residential and commercial solar applications.
The inverter comes with loaded accessories including battery wire, ACDC box, CT sensor, battery temperature sensor, and communication cables.
It supports high PV voltage ranging from 150V–425VDC for easy and flexible solar panel installation.

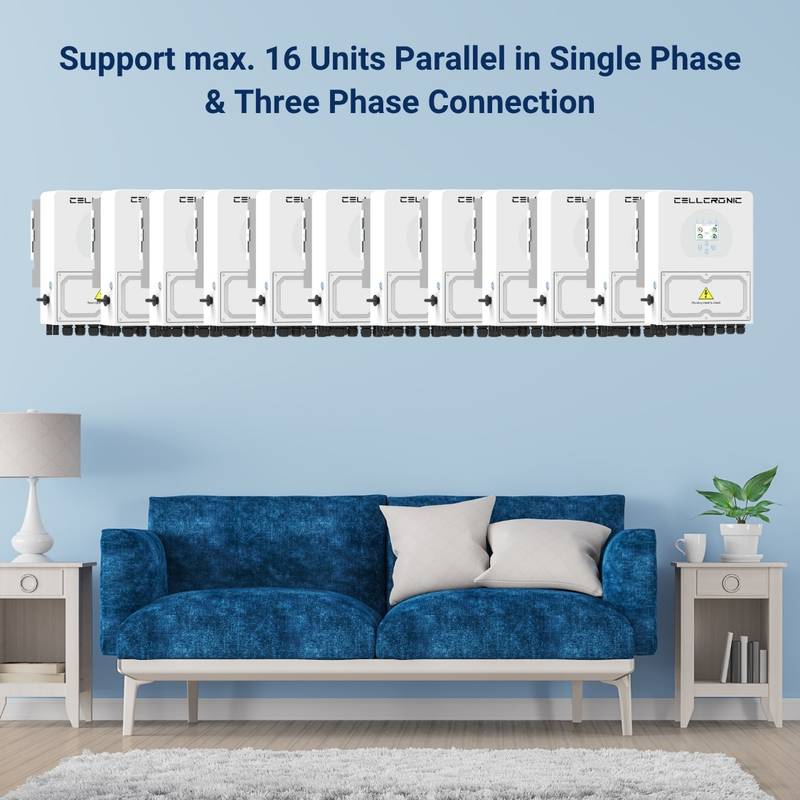

Up to 16 inverters can be connected in parallel for larger operations and three-phase applications.
Key Features
- Colorful Touch LCD Display with IP65 Protection
- Pure Sine Wave Output
- Compatible with Solar Panels and Wind Turbine
- 3300W Maximum Load Capacity
- 4800W Solar PV Capacity
- Supports On-Grid and Off-Grid Mode
- AC Coupling Support for Existing Solar Systems

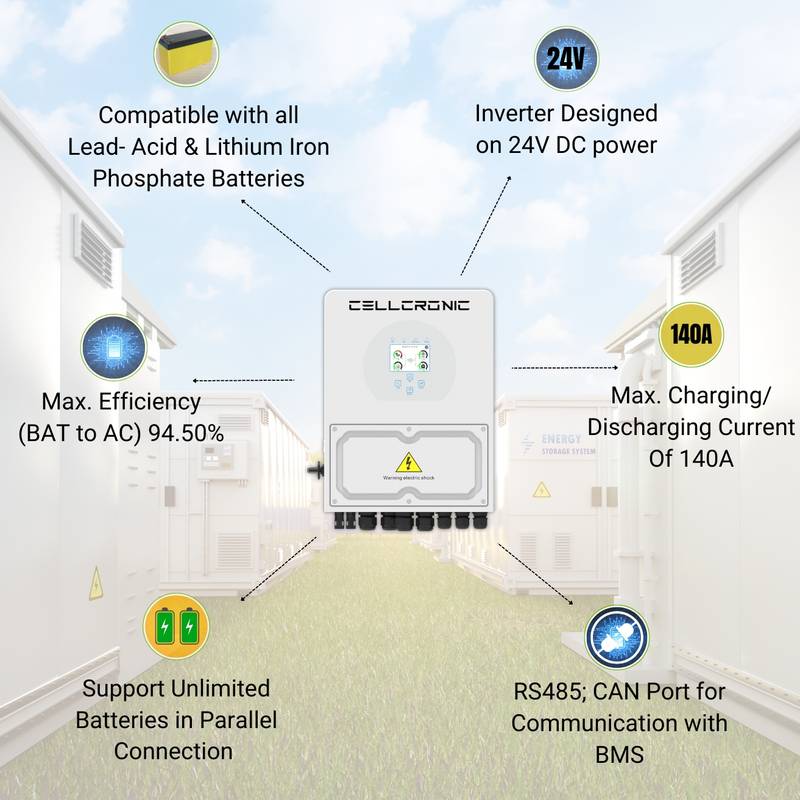

- Compatible with Lead-Acid and Lithium Iron Phosphate Batteries
- Dual Output Inverter for Normal and Heavy Loads

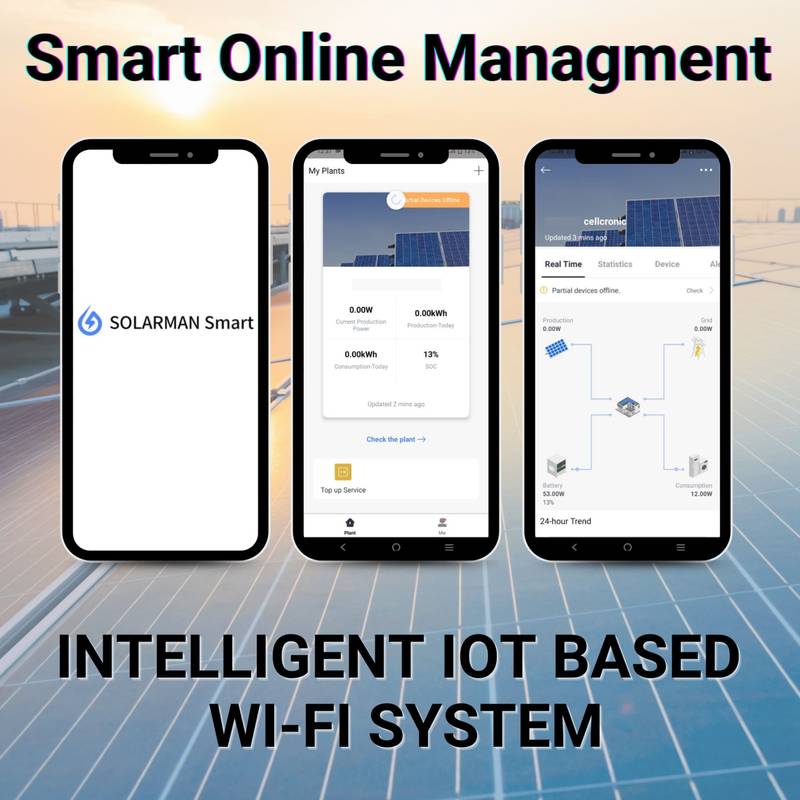

- Intelligent IoT Based Wi-Fi Monitoring System
- 6 Time Period Battery Charging/Discharging
- 140A Maximum Charging & Discharging Current
- Supports Parallel Operation up to 16 Units
- Generator Compatible
- Natural Cooling with Low Noise (<30db)
- 5 Year Standard Warranty (Extendable up to 10 Years)
- 20–25 Years Design Life
Technical Specifications
| Model Information | |
|---|---|
| Model | Galaxy 6G EU 3Kw-24V Hybrid Solar Inverter |
| Battery Input Data | |
| Battery Type | Lead-Acid or Lithium-Ion |
| Battery Voltage Range | 20V – 30V |
| Max Charging Current | 140A |
| Max Discharging Current | 140A |
| Charging Curve | 3 Stages / Equalization |
| External Temperature Sensor | Yes |
| Charging Strategy for Lithium Battery | Self-Adaption to BMS |
| PV String Input Data | |
| Max DC Input Power | 4800W |
| Max PV Input Voltage | 500V |
| Start-up Voltage | 125V |
| MPPT Voltage Range | 150V – 425V |
| Rated PV Input Voltage | 370V |
| Max Operating PV Input Current | 13A |
| Max Input Short Circuit Current | 17A |
| No. of MPPT Trackers | 1 |
| No. of Strings Per MPPT | 1 |
| AC Output Data | |
| Rated AC Input/Output Power | 3000W |
| Max AC Apparent Power | 3300VA |
| Peak Power (Off-grid) | 2x Rated Power for 10 Seconds |
| Rated AC Input/Output Current | 13.6A / 13A |
| Max AC Input/Output Current | 15A / 14.3A |
| Max Continuous AC Passthrough | 35A |
| Power Factor | 0.8 Leading to 0.8 Lagging |
| Output Frequency & Voltage | 50/60Hz, 220/230Vac Single Phase |
| Grid Type | Single Phase |
| Current Harmonic Distortion | THD < 3% |
| Efficiency | |
| Max Efficiency | 97.60% |
| Euro Efficiency | 96.50% |
| MPPT Efficiency | 99.90% |
| Protection Features | |
| DC Reverse Polarity Protection | Integrated |
| AC Output Overcurrent Protection | Integrated |
| Thermal Protection | Integrated |
| AC Output Overvoltage Protection | Integrated |
| AC Output Short Circuit Protection | Integrated |
| Anti-Islanding Protection | Integrated |
| Surge Protection | TYPE II (DC), TYPE II (AC) |
| General Data | |
| Operating Temperature | -40°C to +60°C |
| Cooling Method | Natural Cooling |
| Noise Level | <30db |
| Communication | RS485 / RS232 / CAN |
| Weight | 17Kg |

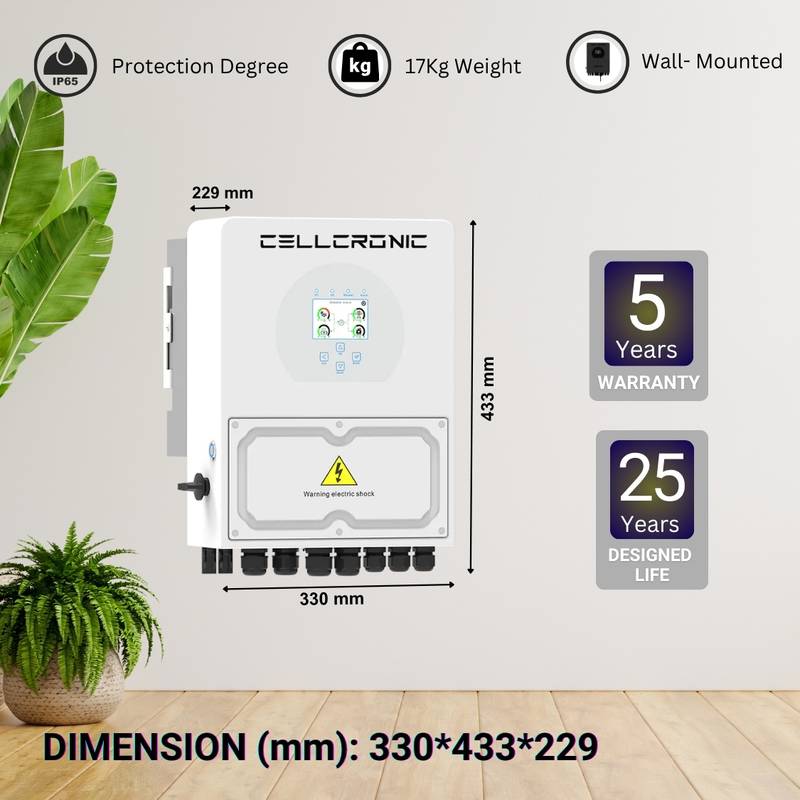

| Dimensions (W × H × D) | 330 × 433 × 229 mm |
| Protection Degree | IP65 |
| Installation Style | Wall-mounted |
| Warranty | 5 Years (Extendable up to 10 Years) |
Certifications & Standards
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,
OVE-Richtlinie R25, G98, G99, VDE-AR-N 4105,
IEC/EN 61000-6-1/2/3/4,
IEC/EN 62109-1,
IEC/EN 62109-2
